TK32H-M Dijital Kürsü
TK32H, H-M ve H-A olmak üzere 3 farkı tipte üretilmiştir. Modeller arasındaki temel fark, kasa içerisinde bulunan yükseklik ayarlama motoru ve konuşmacı ekranının görüş açısının ayarlanmasını sağlayan lift sistemidir.
TK32H-M Dijital Kürsü Özellikleri
- MultiTouch Konuşmacı Ekranı
- Ön Ekran – Medya Oynatıcı Desteği
- Intel Core i3, 8 GB RAM, 128 GB SSD, Windows 11 Pro
- HDMI / VGA Switcher
- Konuşmacı Ekranı – Motorlu Görüş Açısı Ayarı
- Elektrikli Yükseklik Ayarlama (Uzaktan Kumanda)
- 3.5″ Dijital Kronometre
- Creapen Not Uygulaması
Genel Bakış

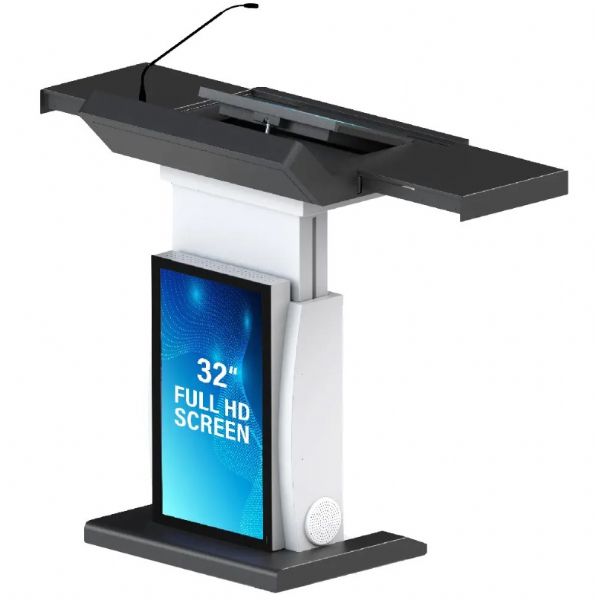

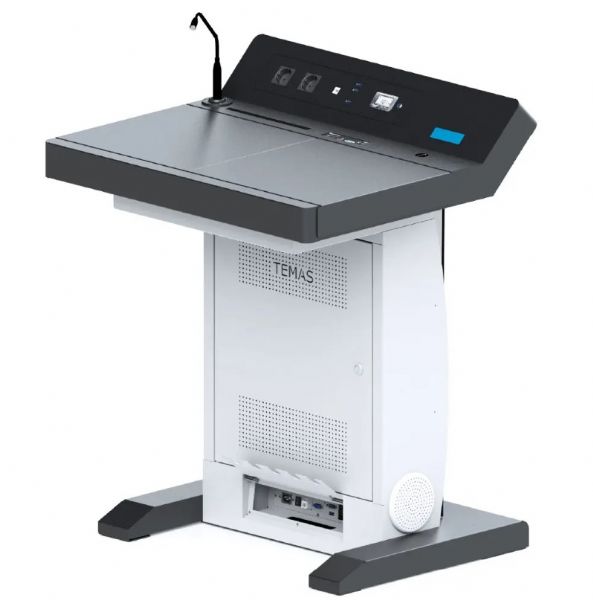

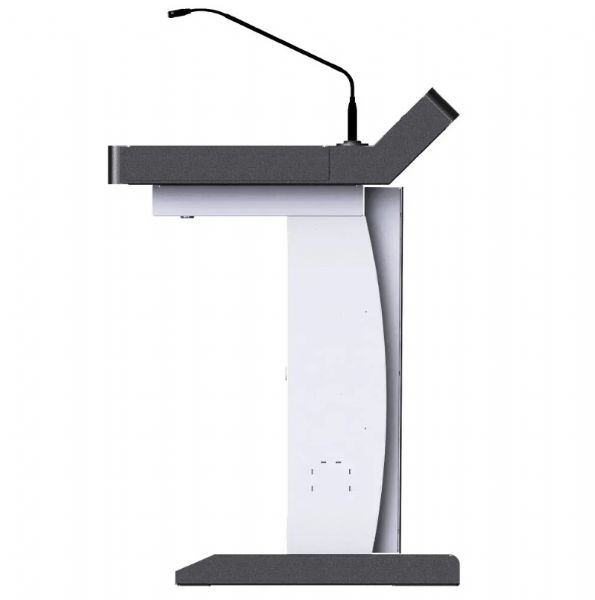

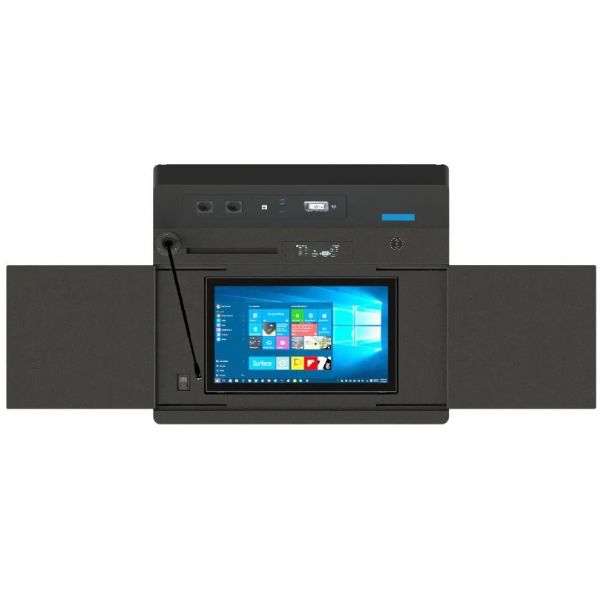

TK32H’ın gövde üzerinde bulunan lift sistemi sayesinde konuşmacının boyuna göre yükseklik ayarı yapılabilmektedir. Dokunmatik ekranın açısını ayarlayarak ideal görüntüyü yakalayabilirsiniz. Ekranı kullanmadığınız zamanlarda kayar kapağı kilitleyerek güvenli bir şekilde muhafaza sağlayabilirsiniz.
Özellikler
Teknik Özellikler
| MODEL NO | TK32H | TK32H-M | TK32H-A |
| Main Specifications | |||
| Speaker Screen | 22″ Full HD Multi Touch Capacitive Touch Screen | 22″ Full HD Multi Touch Capacitive Touch Screen | 22″ Full HD Multi Touch Capacitive Touch Screen |
| Front Screen | 32″ Full HD Digital Signage Monitor with Embedded Signage Media Palyer | 32″ Full HD Digital Signage Monitor with Embedded Signage Media Palyer | – |
| Built-in PC for Speaker Screen | Intel Core i3, 8 GB RAM, 128 GB SSD, Windows 11 Pro | Intel Core i3, 8 GB RAM, 128 GB SSD, Windows 11 Pro | Intel Core i3, 8 GB RAM, 128 GB SSD, Windows 11 Pro |
| Switch | 3×1 switcher with two HDMI inputs and one VGA input | 3×1 switcher with two HDMI inputs and one VGA input | 3×1 switcher with two HDMI inputs and one VGA input |
| Scalar | HD video scaler with HDMI output and input resolution control | HD video scaler with HDMI output and input resolution control | HD video scaler with HDMI output and input resolution control |
| Source selection | Automatic input selection and automatic display control | Automatic input selection and automatic display control | Automatic input selection and automatic display control |
| Speaker Screen Angle Adjustment | Angle adjustment for 22″ speaker touch screen | Angle adjustment for 22″ speaker touch screen | Angle adjustment for 22″ speaker touch screen |
| Lifting Column | – | Available with remote control | – |
| Sliding cover | Two sided on top | Two sided on top | Two sided on top |
| Microphone | 1 pcs 18″ Gooseneck Condenser Microphone | 1 pcs 18″ Gooseneck Condenser Microphone | 1 pcs 18″ Gooseneck Condenser Microphone |
| Detailed Specifications | |||
| Front Panel | 32″ | 32″ | 32″ |
| Screen Specifications | |||
| Resolution | 1920×1080 FHD | 1920×1080 FHD | 1920×1080 FHD |
| Brightness | 350 cd/m2 | 350 cd/m2 | 350 cd/m2 |
| Aspect ratio | 16:9 | 16:9 | 16:9 |
| Panel Type | IPS | IPS | IPS |
| Front Panel Player | Built-in Digital Signage Media Player | Built-in Digital Signage Media Player | Built-in Digital Signage Media Player |
| Front Panel Content Management Software | Available | Available | Available |
| Lecturer Panel | 22″ | 22″ | 22″ |
| Screen Specifications | |||
| Resolution | 1920×1080 FHD | 1920×1080 FHD | 1920×1080 FHD |
| Brightness | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 |
| Panel Type | IPS | IPS | IPS |
| Aspect ratio | 16:9 | 16:9 | 16:9 |
| Touch Technology | Capacitive | Capacitive | Capacitive |
| Touch Points | 10 points | 10 points | 10 points |
| Lecturer Panel PC Specifications | |||
| CPU | Intel 3.70 / 4.40 GHz | Intel 3.70 / 4.40 GHz | Intel 3.70 / 4.40 GHz |
| RAM | 8 GB DDR4 | 8 GB DDR4 | 8 GB DDR4 |
| HDD | 128 GB SSD | 128 GB SSD | 128 GB SSD |
| Operating System | Windows 11 Pro | Windows 11 Pro | Windows 11 Pro |
| Height Adjustment Lifting Column | |||
| Movement | – | Vertical (Up/Down) | – |
| Control | – | By Buttons (Up/Down) | – |
| Speed | – | Max speed: 38 mm/s | – |
| Lifting strength | – | 700N | – |
| Locking System | – | Automatic Looking when engine not working | – |
| Engine Type | – | Electrical | – |
| Remote control | – | Available | – |
| Microphone | |||
| Length | 18″ | 18″ | 18″ |
| No of microphone | 1 pcs | 1 pcs | 1 pcs |
| Output Connector | 3-way XLR (Male) | 3-way XLR (Male) | 3-way XLR (Male) |
| Polar Pattern | Cardioid | Cardioid | Cardioid |
| Frequency Response | 70-16000 Hz | 70-16000 Hz | 70-16000 Hz |
| Sensitivity (at 1,000Hz) | –33 dBV/Pa[1] (22 mV) | –33 dBV/Pa[1] (22 mV) | –33 dBV/Pa[1] (22 mV) |
| Impedance | 180 Ω | 180 Ω | 180 Ω |
| Power ON indicator | LED | LED | LED |
| Power requirement | Phantom Power (48V) | Phantom Power (48V) | Phantom Power (48V) |
| Timer & Chronometer | |||
| Screen size | 3,5″ | 3,5″ | 3,5″ |
| Clock | Available | Available | Available |
| Timer | Available | Available | Available |
| Stopwatch | Available | Available | Available |
| Touch | Single touch | Single touch | Single touch |
| Inputs | |||
| VGA | Available (On desk for Laptop) | Available (On desk for Laptop) | Available (On desk for Laptop) |
| Sound | 3,5mm jak (On desk for Laptop) | 3,5mm jak (On desk for Laptop) | 3,5mm jak (On desk for Laptop) |
| HDMI | Available (On desk for Laptop) | Available (On desk for Laptop) | Available (On desk for Laptop) |
| Ethernet | Available (On desk for Laptop) | Available (On desk for Laptop) | Available (On desk for Laptop) |
| 230V Plug (Max 5A) | Available (On desk for Laptop / mobile phone charge) | Available (On desk for Laptop / mobile phone charge) | Available (On desk for Laptop / mobile phone charge) |
| USB | USB 2.0 and USB 3.0 (for internal PC) | USB 2.0 and USB 3.0 (for internal PC) | USB 2.0 and USB 3.0 (for internal PC) |

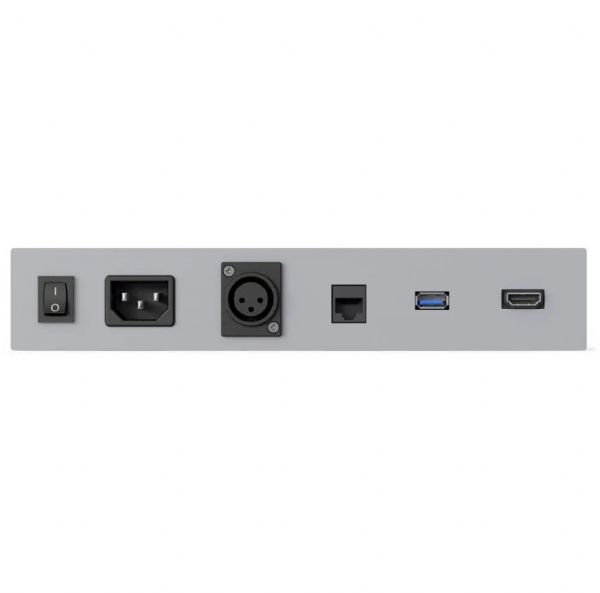

| Outputs (Bottom of Podium) | |||
| HDMI | Available (Projector Out) (max output 1080p) | Available (Projector Out) (max output 1080p) | Available (Projector Out) (max output 1080p) |
| Microphone | 3-way XLR (Male) | 3-way XLR (Male) | 3-way XLR (Male) |
| Ethernet 1 | Network Connection for Complete System | Network Connection for Complete System | Network Connection for Complete System |
| Power | |||
| Power Input | 230V 50Hz | 230V 50Hz | 230V 50Hz |
| Power Consumption | 550W (max) | 550W (max) | 550W (max) |
| Peripherals &other features | |||
| Color | Black speaker panel and base, white body | Black speaker panel and base, white body | Black speaker panel and base, white body |
| Packing | Wooden box export packing | Wooden box export packing | Wooden box export packing |
| Mechanical Specs | |||
| Outline Dimension (mm) | Set: 813 x 810 x 1136 Package: 890 x 950 x 1260 | Set: 813 x 810 x 1136 Package: 890 x 950 x 1260 | Set: 813 x 810 x 1136 Package: 890 x 950 x 1260 |
| Weight (kg) | Set: 90 kg Package: 159 kg | Set: 90 kg Package: 140 kg | Set: 82 kg Package: 132 kg |
| Optional features | |||
| Amplifier | – | Amplifier | – |
| Speaker impedans | 2x 4Ω Speakers | 2x 4Ω Speakers | – |
| Sound Output power | 2x 20W | 2x 20W | – |
| Total Harmonic Distorsion | 1,01 | 2,01 | – |
| Signal/Noise Ratio | 80dB | 80dB | – |
| Frequency range | 20Hz to 20kHz | 20Hz to 20kHz | – |
| Stereo Channel Seperation | >75dB | >75dB | – |
| Speaker | |||
| Impedans | 30 Watts | 30 Watts | |
| SPL 1W/1m in dB | 88 | 88 | |
| Frequency response in Hz | 90 – 19K | 90 – 19K | |
| Size | 4″ | 4″ | |
| Impedance in ohms | 16 | 16 | |
| Number of Speakers | 2 pcs | 2 pcs | |
Dökümanlar
Katalog : Temas-TK32H-M-Digital-Podium
