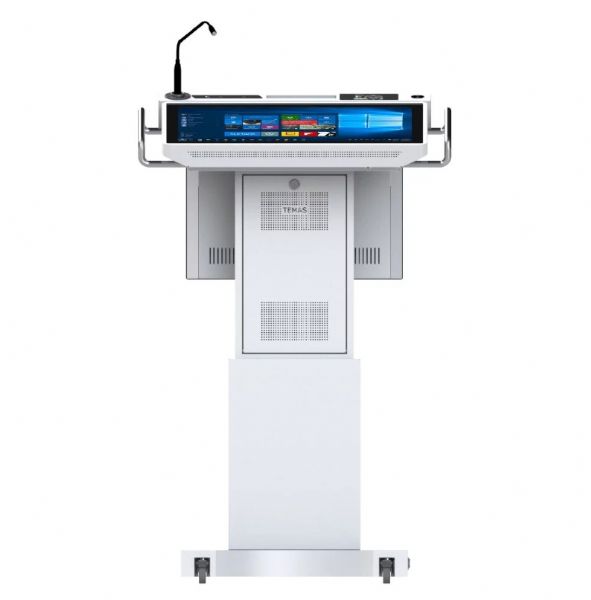

DL27M Podium Profesyonel Dijital Kürsü

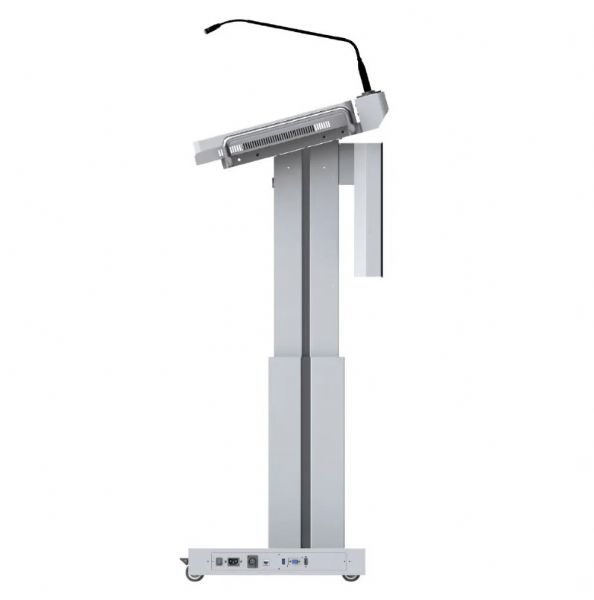

DL27M Dijital kürsü konuşmacı boyuna göre uzayıp kısalabilen elektrikli bir lift sistemine sahiptir. Konuşmacıların boy ölçülerine göre yükselip alçalabilen elektrikli motor, kürsü üzerinden veya uzaktan kumanda ile ayarlanabilir.
DL27M Podium Profesyonel Dijital Kürsü Özellikleri
- MultiTouch Konuşmacı Ekranı

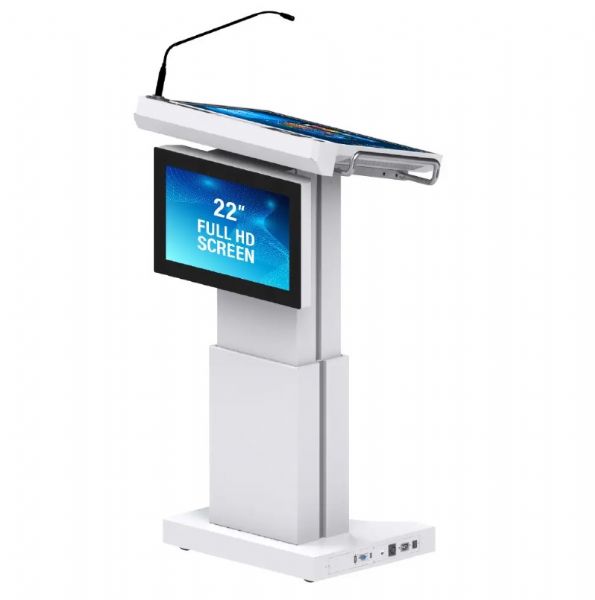

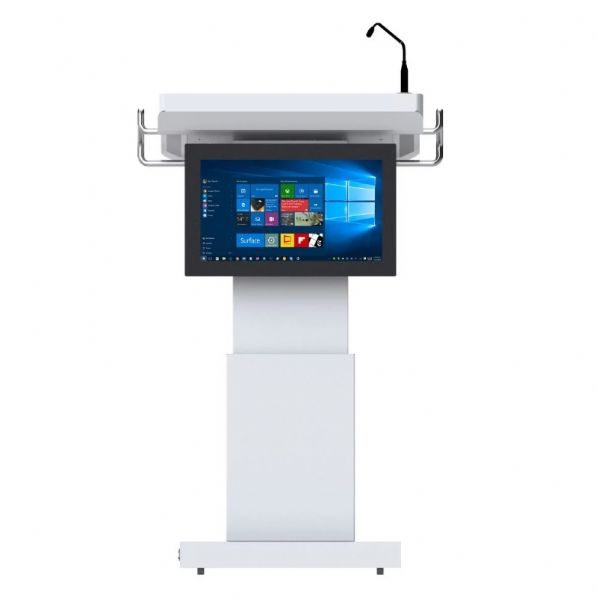

- 24″ Ön Ekran – Medya Oynatıcı Desteği
- Player PC : Intel Core i3, 8 GB RAM, 128 GB SSD, Windows 11 Pro
- Elektrikli Yükseklik Ayarlama (Uzaktan Kumanda)
- 3.5″ Dijital Kronometre
- Creapen Not Uygulaması
Genel Bakış

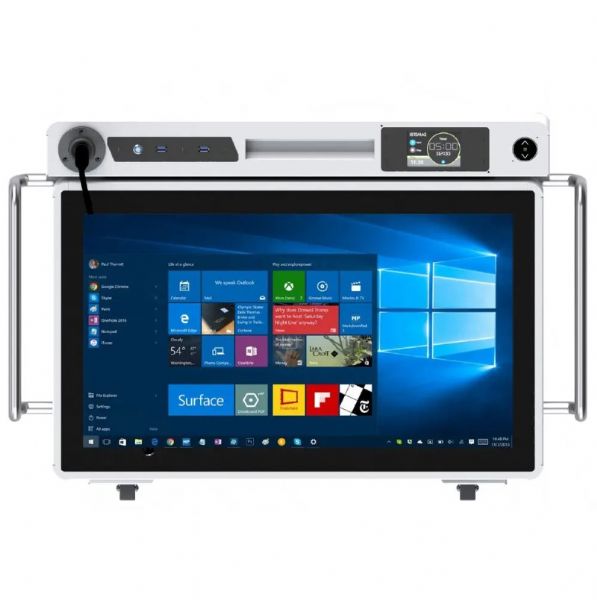

Kürsü üzerinde kullanılan 27” dokunmatik ekranla, yapacağınız prezantasyonlara yorum ve objeler eklemek oldukça kolaydır. DL27M Podium görüntü ve ses sistemleri ile entegre edilebilir.
Özellikler
Teknik Özellikler
| MODEL NO | DL27M | DL27M-F |
| Main Specifications | ||
| Speaker Screen | 27″ Multi touch capacitive | 27″ Multi touch capacitive |
| Front Screen | n/a | 24″ with built-in signage media player |
| Built-in PC for Speaker Screen | Intel Core i3, 8 GB RAM, 128 GB SSD, Windows 11 Pro | Intel Core i3, 8 GB RAM, 128 GB SSD, Windows 11 Pro |
| Microphone | 1 pcs 18″ Gooseneck Condenser Microphone | 1 pcs 18″ Gooseneck Condenser Microphone |
| Lifting Column | Available | Available |
| Detailed Specifications | ||
| Front Panel | 24″ | |
| Screen Specifications | ||
| Resolution | 1920×1080 FHD | |
| Brightness | 250 cd/m2 | |
| Aspect ratio | 16:9 | |
| Panel Type | IPS | |
| Front Panel Player | Built-in Digital Signage Media Player | |
| Front Panel Content Management Software | Available | |
| Lecturer Panel | 27″ | 27″ |
| Screen Specifications | ||
| Resolution | 1920×1080 FHD | 1920×1080 FHD |
| Brightness | 250 cd/m2 | 250 cd/m2 |
| Panel Type | IPS | IPS |
| Aspect ratio | 16:9 | 16:9 |
| Touch Technology | Capacitive | Capacitive |
| Touch Points | 10 points | 10 points |
| Lecturer Panel PC Specifications | ||
| CPU | Intel 3.70 / 4.40 GHz | Intel 3.70 / 4.40 GHz |
| RAM | 8 GB DDR4 | 8 GB DDR4 |
| Touch Technology | Capacitive | Capacitive |
| HDD | 128 GB SSD | 128 GB SSD |
| Operating System | Windows 11 Pro | Windows 11 Pro |
| Microphone | ||
| Length | 18″ | 18″ |
| No of microphone | 1 pcs | 1 pcs |
| Output Connector | 3-way XLR (Male) | 3-way XLR (Male) |
| Polar Pattern | Cardioid | Cardioid |
| Frequency Response | 70-16000 Hz | 70-16000 Hz |
| Sensitivity (at 1,000Hz) | –33 dBV/Pa[1] (22 mV) | –33 dBV/Pa[1] (22 mV) |
| Impedance | 180 Ω | 180 Ω |
| Power ON indicator | LED | LED |
| Power requirement | Phantom Power (48V) | Phantom Power (48V) |
| Height Adjust Engine | ||
| Movement | Vertical (Up/Down) | Vertical (Up/Down) |
| Control | By Buttons (Up/Down) | By Buttons (Up/Down) |
| Speed | Max speed: 38 mm/s | Max speed: 38 mm/s |
| Lifting strength | 700N | 700N |
| Locking System | Automatic Looking when engine not working | Automatic Looking when engine not working |
| Engine Type | Electrical | Electrical |
| Remote control | Available | Available |
| Timer & Chronometer | ||
| Screen size | 3,5″ | 3,5″ |
| Clock | Available | Available |
| Timer | Available | Available |
| Stopwatch | Available | Available |
| Touch | Single touch | Single touch |

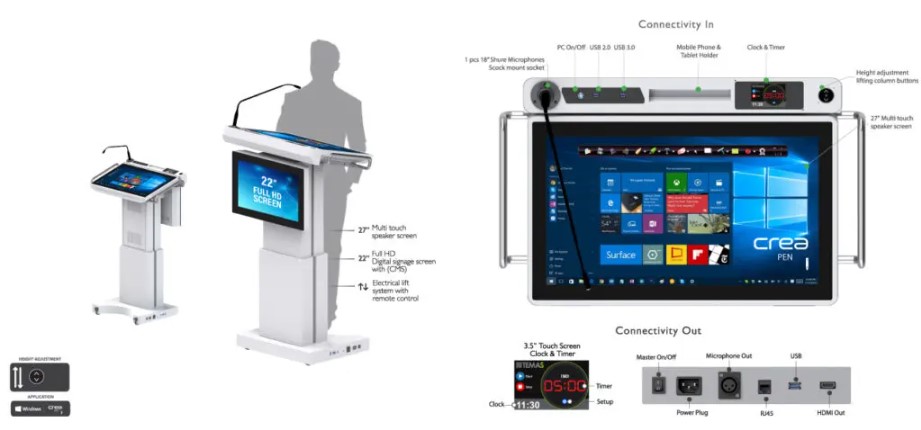

| Inputs (on Speaker Panel) | ||
| USB | USB 2.0 and USB 3.0 (for internal PC) | USB 2.0 and USB 3.0 (for internal PC) |
| Height udjustment | up&down | up&down |
| Outputs (Bottom of Podium) | ||
| HDMI | Available | Available |
| Ethernet | Available | Available |
| XLR for microphone | Available | Available |
| USB | USB 2.0 (for internal PC) | USB 2.0 (for internal PC) |
| Power | ||
| Power Input | 230V 50Hz | 230V 50Hz |
| Power Consumption | 400W (max) | 450W (max) |
| Peripherals &other features | ||
| Color | Grey (RAL 7047) | Grey (RAL 7047) |
| Packing | Wooden box export packing | Wooden box export packing |
| Mechanical Specs | ||
| Minimum Height | 783 mm | 783 mm |
| Maximum Height | 1233 mm | 1233 mm |
| Outline Dimension (mm) | Set: 526 x 798 x 783 Package: 622 x 894 x 989 | Set: 550 x 800 x 1091 Package: 670 x 920 x 1300 |
| Weight (kg) | Set: 63 kg Package: 108 kg | Set: 68 kg Package: 112 kg |
| Optional features | Flight case | Flight case |
Dökümanlar
Katalog : DL27M-F-Digital-Podium
Ürün Videosu
DL27M Profesyonel Dijital Kürsü hakkında daha fazla bilgi için bizimle iletişime geçiniz
