DL24B Dijital Kürsü

DL24B Dijital Kürsü

DL24B’nin tasarım amacı, bir konferans salonunda tüm temel kürsü ihtiyaçlarınızı karşılamaktır. DL24B’ye mevcut projeksiyon veya LCD görüntüleme sistemlerinizi bağlamak oldukça kolaydır.

DL24B Dijital Kürsü Özellikleri

  • MultiTouch Konuşmacı Ekranı
  • 43″ Ön Ekran – Medya Oynatıcı Desteği
  • Intel Core i3, 8 GB RAM, 128 GB SSD, Windows 11 Pro
  • Ön Ekran İçin İçerik Yönetim Yazılımı
  • 3.5″ Dijital Kronometre
  • Creapen Not Uygulaması

















Genel Bakış

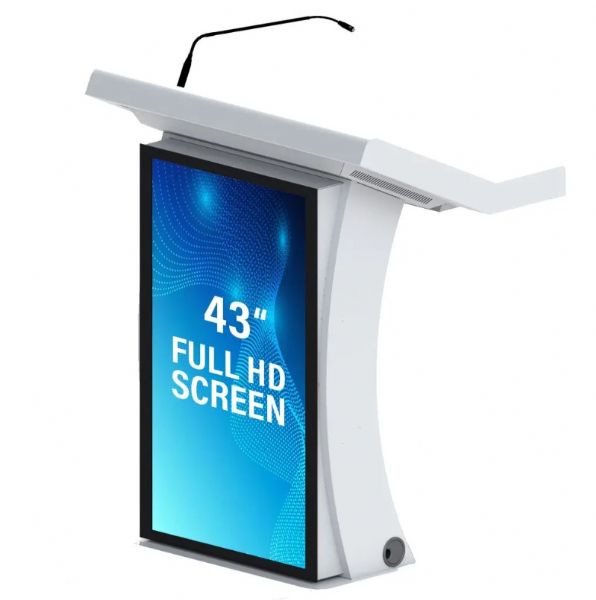

DL24B ayrıca tek başına kullanıma da uygundur. 43″ lük büyük ön ekranı sayesinde büyük konferans salonlarında bile net görüntü sağlar.



Özellikler



Teknik Özellikler


MODEL NO DL24B
Main Specifications
Speaker Screen 22″ Multi touch capacitive
Front Screen 43″ with built-in signage media player
Built-in PC for Speaker Screen Intel Core i3, 8 GB RAM, 128 GB SSD, Windows 11 Pro
Microphone 1 pcs 18″ Gooseneck Condenser Microphone
Detailed Specifications

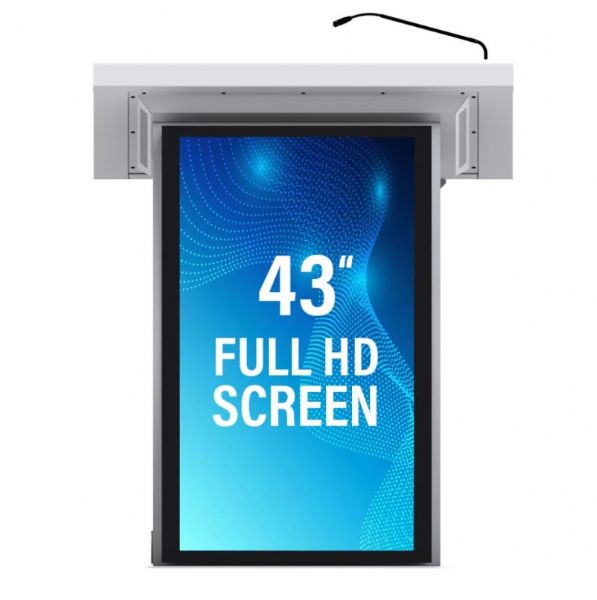

Front Panel 43″
Screen Specifications
Resolution 1920×1080 FHD
Brightness 500 cd/m2
Aspect ratio 16:9
Panel Type IPS
Front Panel Player Built-in Digital Signage Media Player
Front Panel Content Management Software Available

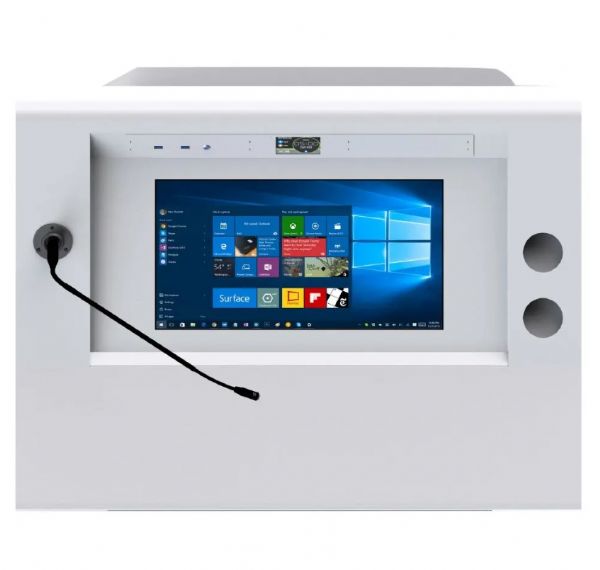

Lecturer Panel 22″
Screen Specifications
Resolution 1920×1080 FHD
Brightness 250 cd/m2
Panel Type IPS
Aspect ratio 16:9
Touch Technology Capacitive
Touch Points 10 points
Lecturer Panel PC Specifications
CPU Intel 3.70 / 4.40 GHz
RAM 8 GB DDR4
HDD 128 GB SSD
Operating System Windows 11 Pro
Microphone
Length 18″
No of microphone 1 pcs
Output Connector 3-way XLR (Male)
Polar Pattern Cardioid
Frequency Response 70-16000 Hz
Sensitivity (at 1,000Hz) –33 dBV/Pa[1] (22 mV)
Impedance 180 Ω
Power ON indicator LED
Power requirement Phantom Power (48V)
Timer & Chronometer
Screen size 3,5″
Clock Available
Timer Available
Stopwatch Available
Touch Single touch

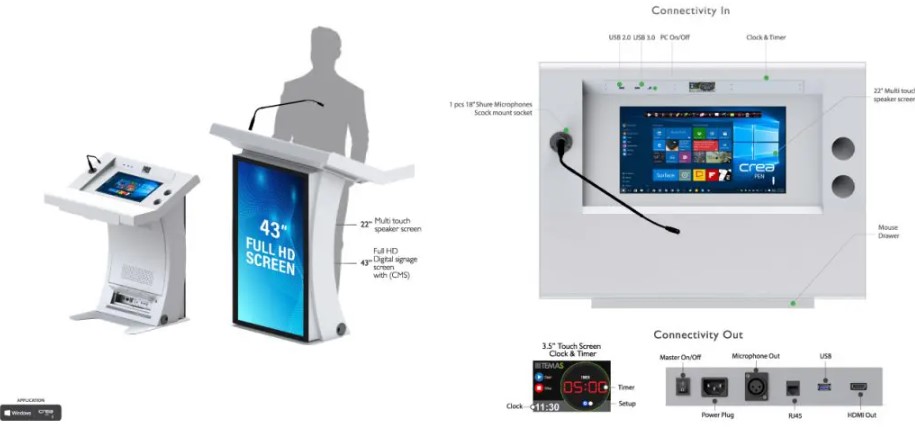

Inputs (on Speaker Panel)
USB USB 2.0 and USB 3.0 (for internal PC)

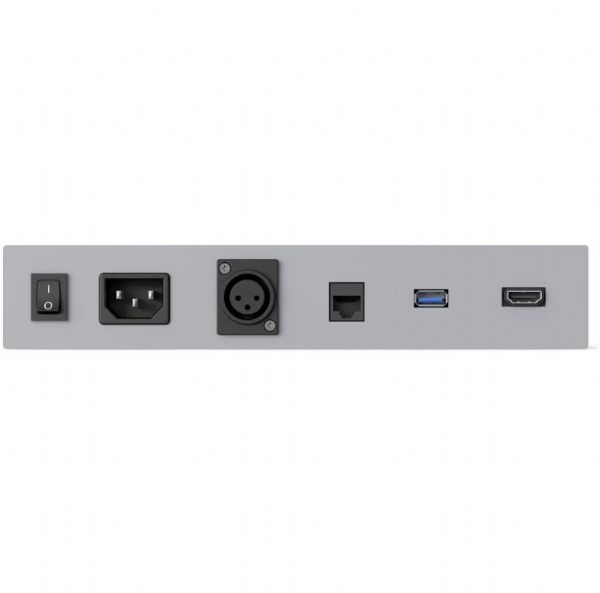

Outputs (Bottom of Podium)
HDMI Available
Ethernet Available
XLR for microphone Available
USB USB 2.0 (for internal PC)
Power
Power Input 230V 50Hz
Power Consumption 450W (max)
Peripherals &other features
Color White
Packing Wooden box export packing
Mechanical Specs
Outline Dimension (mm) Set: 742 x 950 x 1159
Weight (kg)
Optional features Front screen PC Flight case



Dökümanlar


Katalog : DL24B-Digital-Podium


Ürün Videosu



DL24B Dijital Kürsü hakkında daha fazla bilgi için bizimle iletişime geçiniz
